4G/5G/ private network synchronization module
The synchronization module can automatically complete cell search and wireless signaling processing of TD-LTE(4G synchronous module)/5G NR(5G synchronous module) wireless network, get accurate TDD upstream and downstream time slot, upstream and downstream time slot ratio and other information, and output the upstream and downstream time slot indicator signal through GPIO interface, the module interface is standard Mini PCIE.The 4G synchronization module supports the function of TD-LTE data card, which can realize the data transmission function of 4G Internet.The frequency band supported by the private network synchronization module can be customized according to the demand.
Product Details
4+5G Syn Mod | Parameter | Define |
Band | 4G TD-LTE:B3/B8/B34/B39/B40/B41(Sub6G Other frequency bands can be customized ); 5G NR FR1:N39/N40/N41/N77/N78/N79(Sub6G Other frequency bands can be customized ); 5G NR FR2 To achieve frequency conversion from the millimeter-wave band to the Sub-6GHz band, an external frequency converter is required. | |
receiver sensitivity(dBm) | -94 | |
Power Draw(W) | 1.2 | |
Supply(V) | 3.3 | |
Temperature(V) | -30-70 | |
Size(mm) | 51 x 30 x 3.5 |

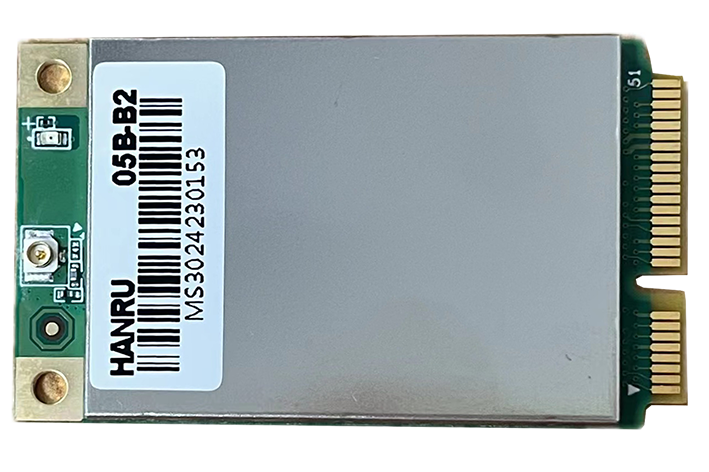

Model | Define |
HR-TD-05AF1 | support 4G TDD band and 5GNR FR1 band |
HR-TD-05A-BB | support 5GNR FR1 band,The 5G NR baseband signal is input through the digital pin |
HR-TD-05A-T1 | support 4G TDD band and 5GNR FR1 band，And through the TDD IO pin output TDD time slot signal to the timing module |
HR-TD-05B-B2 | Multi-band synchronization is supported for 4G+5G, and bands with 3 TDDS and 2 FDDS are supported |
模塊型號(hào)

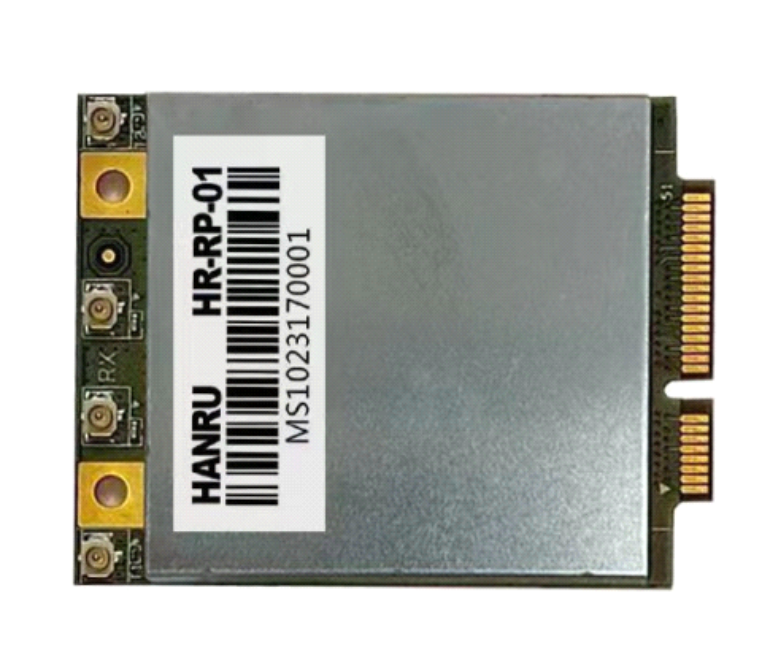

Repeater Module | Parameter | Define |
| interface | Mini-PCIE 52pin | |
| Band | Sub6G | |
| Rx Port | IPEX Receptacle | |
| Rx Channel | 2R2T | |
| Supply(V) | DC 3.3V | |
| Size(mm) | 51mmx 39mm x 3.5mm |
| Function | sync module | Repeater Module |
| 4G sync module | √ | √ |
5G sync module | √ | √ |
| 20M~100MBandpass digital filtering | ⅹ | √ |
| 2R2Tfrequency-shift | ⅹ | √ |
| Wireless link self-excitation detection and control | ⅹ | √ |
| Uplink traffic statistics | ⅹ | √ |
| Room division wireless monitoring channel and AFC | ⅹ | √ |
Measurement of loss and length of feeder line | ⅹ | √ |
Mobile: +86-13600975566For more information or to order products, please contact Xiamen Hejiaxing Sales Office.
WeChat：13600975566
QQ: 2355620732
Mail：zf@hjx.cn
